32kWh – Enough for a Full Day

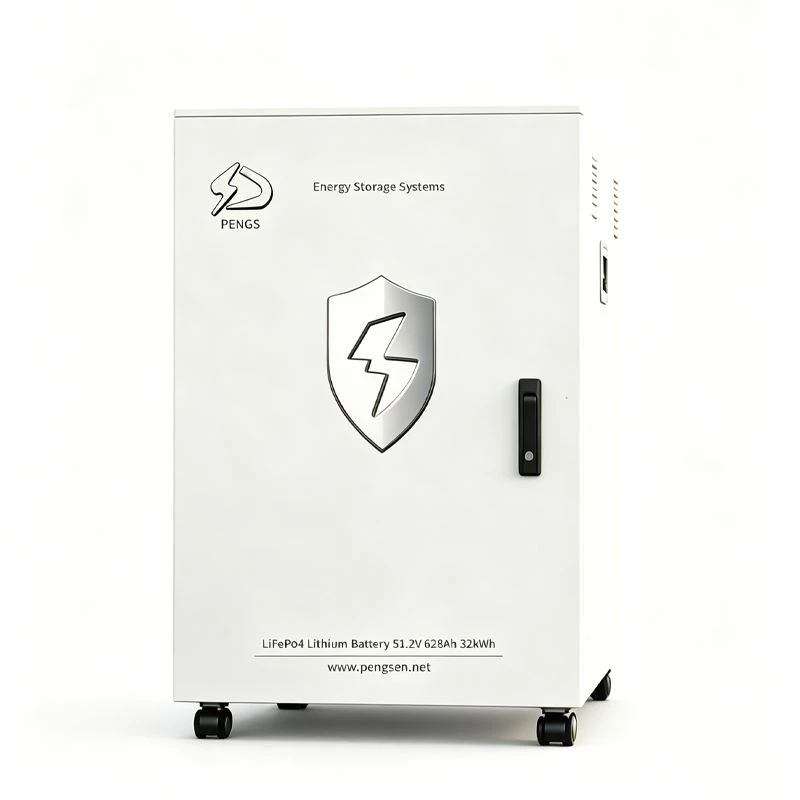

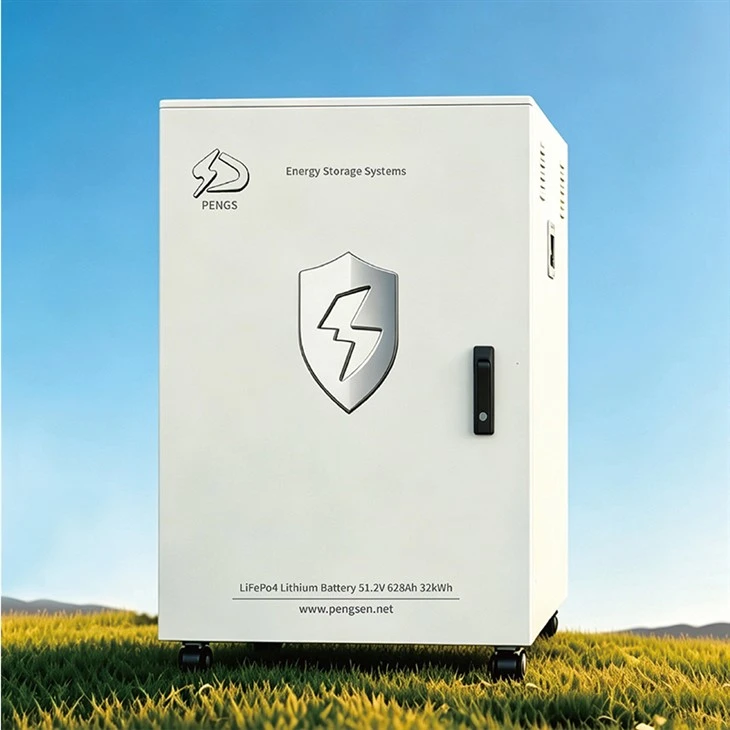

Many homes and farms need a large amount of power storage. A 32kWh capacity covers a full day of usage. Fridges, AC units, and water pumps all run without trouble. This LiFePO4 Lithium Battery System has a nominal voltage of 51.2V. Its nominal capacity is 628Ah, and its rated energy is 32kWh. The cycle life exceeds 6000 cycles. One charge per day means more than 16 years of service.
We started our battery business in 2014. That gives us 12 years of experience. Our Zhuhai factory covers 14,000 square meters, and we have 230 workers on site. Our R&D team previously developed phone batteries for Siemens and Panasonic.
Safety is the top concern for energy storage. That is why we use LiFePO4 cells. This chemistry is very stable and is not prone to catching fire. Many customers choose us for this reason.
Works in Hot and Cold Climates
This LiFePO4 Lithium Battery System operates in temperatures ranging from -20℃ to 60℃. It performs well in both northern winters and southern summers. The design life is 10 years. The communication port is RS485. The charging temperature ranges from 0℃ to 60℃. The relative humidity range is 5% to 95% without condensation.
The battery system measures 625 × 715 × 940mm. Its net weight is 289kg, and its gross weight is 371.5kg. The outer package measures 1082 × 1000 × 1108mm. All these specifications come from actual testing, so you can rely on them.
Detailed Specs
Here is the full spec sheet for this LiFePO4 Lithium Battery System:
|
Item |
Parameter |
|
Model |
ESS-LP32-S0 |
|
Rated Energy |
32kWh |
|
Nominal Voltage |
51.2V |
|
Nominal Capacity |
628Ah |
|
Working Voltage Range |
43.2V~57.6V |
|
Standard Charge Current |
157A |
|
Max Continuous Charge Current |
157A |
|
Standard Discharge Current |
157A |
|
Max Continuous Discharge Current |
157A |
|
Charge Cut-off Current (0.05C) |
31.4A |
|
Communication |
RS485 |
|
Charge Temp |
0℃~60℃ |
|
Working Temp |
-20℃~60℃ |
|
Relative Humidity |
5%~95% Non-condensing |
|
Design Life |
10 Years |
|
Cycle Life |
6000 Cycles @25℃ @0.5C |
|
System Size (mm) |
625 × 715 × 940 |
|
Net Weight (kg) |
289 |
|
Gross Weight (kg) |
371.5 |
|
Outer Package (mm) |
1082 × 1000 × 1108 |
We support OEM and ODM services. The minimum order quantity for energy storage systems is 100 sets. Before shipment, we conduct a 100% inspection. Every battery pack goes through aging tests. The warranty period is 36 to 60 months. Our after-sales team is always ready to help.
Need a sample? Sample development takes 35–60 days, and production takes 35–45 days. We send daily photos and videos, so you will never wonder where your order stands. We accept EXW and FOB terms. Payment terms are a 30%–50% deposit, with the balance paid before shipment. Bulk orders qualify for discounts. We accept USD, EUR, GBP, HKD, CNY, AUD, and JPY.
